Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Name: Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone
Brand: Linsing
Price: 28.00 USD

Quality Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone wholesale

Warranty : None

Customized support : OEM, ODM, OBM

Place of Origin : Jiangxi, China

Brand Name : Linsing

Model Number : diamond wire saw

Product name : Diamond Wire Saw Rope

Application : Cutting Stone

Material : Diamond + Metal Powder

Usage : Granite marble quartz, concrete etc.

Certificate : TUV

Grade : A-Grade

Feature : High Performance Cutting

Advantage : Wear ResistantSuperior

Hardness : Hard

Machine : Wire saw machine for quarrying

Packaging Details : Carton

Port : Shanghai, Shenzhen, Ningbo, Xiamen, etc

Supply Ability : 1000 Meter/Meters per Day Diamond wire saw for

MOQ : 100 meters

Price : $28.00/meters 100-999 meters

Contact Now

Diamond Wire Saw For Reinforced Concrete Cutting

Linsing provides Excellent premium quality Diamond Wire designed for delivering the highest concrete cutting and sawing performance at the lowest cost.

Product Features:
1. Customize different formula and guarantee performance cost according to the mixing percentage of hard, medium, soft( Determinants:content proportion of steel and concrete hardness ) all kinds reinforced concrete, in order to maximize the performance;
2. Fine selected diamond with great strength and toughness ensures the sharpening feature and lifetime of the diamond wire;
3. Sophisticated sintering technology with well controlled temperature and pressure guarantees the diamond beads with great anti-abrasiveness feature;
4. Mature injection technology and production technique makes sure the plastic enter into every gap of cable and holds the diamond beads with firmness;
5. Self-developed automatic production equipment and strict inline and final inspection controls the quality and stability.

Product Specification:

Diameter (mm)	Bead No. (pcs/m)	Reinforcement	Usage
D10.5	40	Rubber/Rubber +spring	Reinforce Concrete
D11.0	40	Rubber/Rubber +spring	Reinforce Concrete
D11.5	40	Rubber/Rubber +spring	Reinforce Concrete

Cutting material	Line speed (m/s)	Efficiency(m²/s)	Life(m²/m)
Class1-2	18-25	7-10	2.5-3.5
Class3-4	18-23	3-4	1.5-2.5
Class5	17-20	1-2.5	0.5-1.5

Other specifications are available upon request.

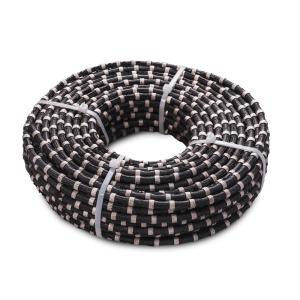

Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone

Steel Rubber Diamond Wire Saw for Cutting of Reinforced Concrete Granite Marble Stone Images
