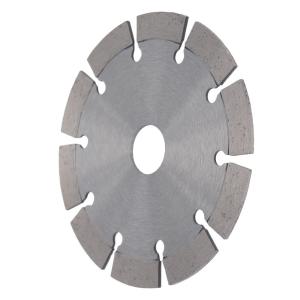

12in Laser Weld Saw Blade for Processing Stone and Concrete Lower Noise

Name: 12in Laser Weld Saw Blade for Processing Stone and Concrete Lower Noise
Brand: Linxing
Price: 5.00 USD

Quality 12in Laser Weld Saw Blade for Processing Stone and Concrete Lower Noise wholesale

Blade Thickness : 0.014in, 0.032in, 0.05in, 0.02in, 0.035in, 0.018in, 0.042in, 0.025in

Blade Width : 1 1/2IN, 3/4IN, 1/2in, 1 1/4IN, 5/8in, 3/8in, 1/8IN, 1/4in, 1in, 3/16in, Other

Arbor Size : 7/8IN, 10mm, 5/8in

Teeth per Inch : 10, 24

Teeths : 140, 144

Blade Length : 6in, 6 1/2in, 10in

Blade Diameter : 18in, 12in

Edge Height : 0.315in(8mm), 0.472in(12mm)

Process Type : Laser welded

Customized support : ODM

Place of Origin : Jiangxi, China

Brand Name : Linxing

Product Name : Linxing diamond saw blade

Application : processing stone

Certification : CE.ISO9001:2008, CE,ISO900

Keywords : Laser Weld Saw Blade

Service : After-service

Feature : Lower Noise

Packaging Details : The inner package is packaged with transparent plastic film, and the outer package is a carton.

Port : Xiamen, Shanghai, etc

Supply Ability : 3000 Piece/Pieces per Month

MOQ : 100 pieces

Price : $5.00/pieces 100-999 pieces

Contact Now

Product Description

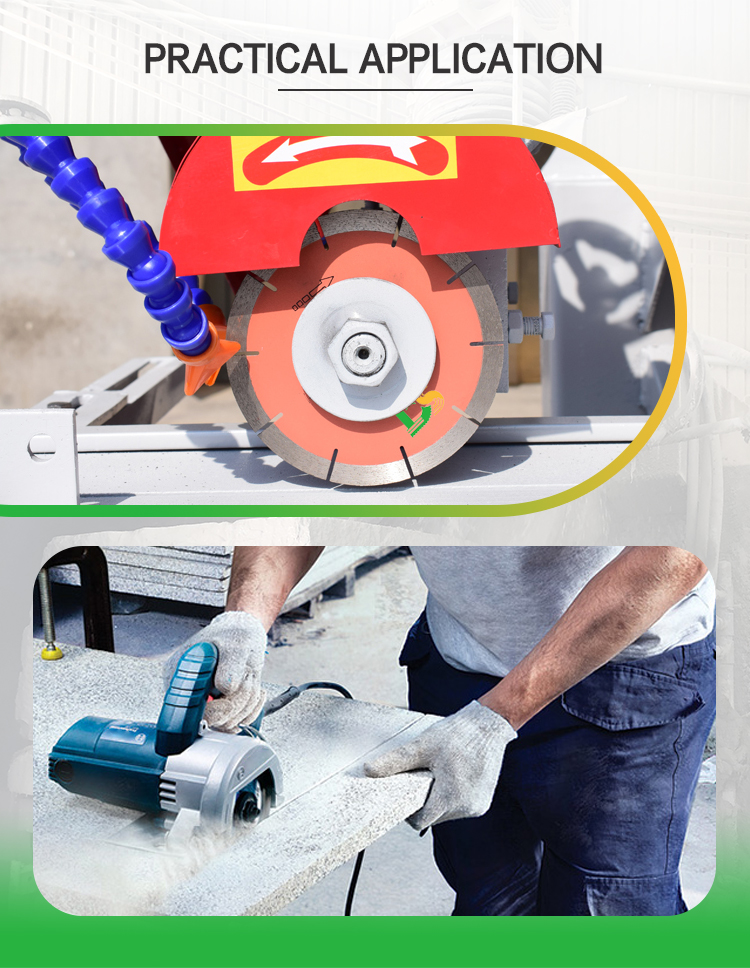

The blade is used for processing stone and concrete materials the common processing method as follows: cutting edge of slab edging with bevel shape rough finishing the irregular surface and profile.

1: The laser welded blade is mainly a split-tooth structure. The saw blade of this structure is very sharp in terms of cutting edge. It is suitable for cutting stone, concrete, asphalt, and other materials, but it does not recommend cutting materials that are easy to chip, such as microcrystalline stone, ceramics, and other materials.

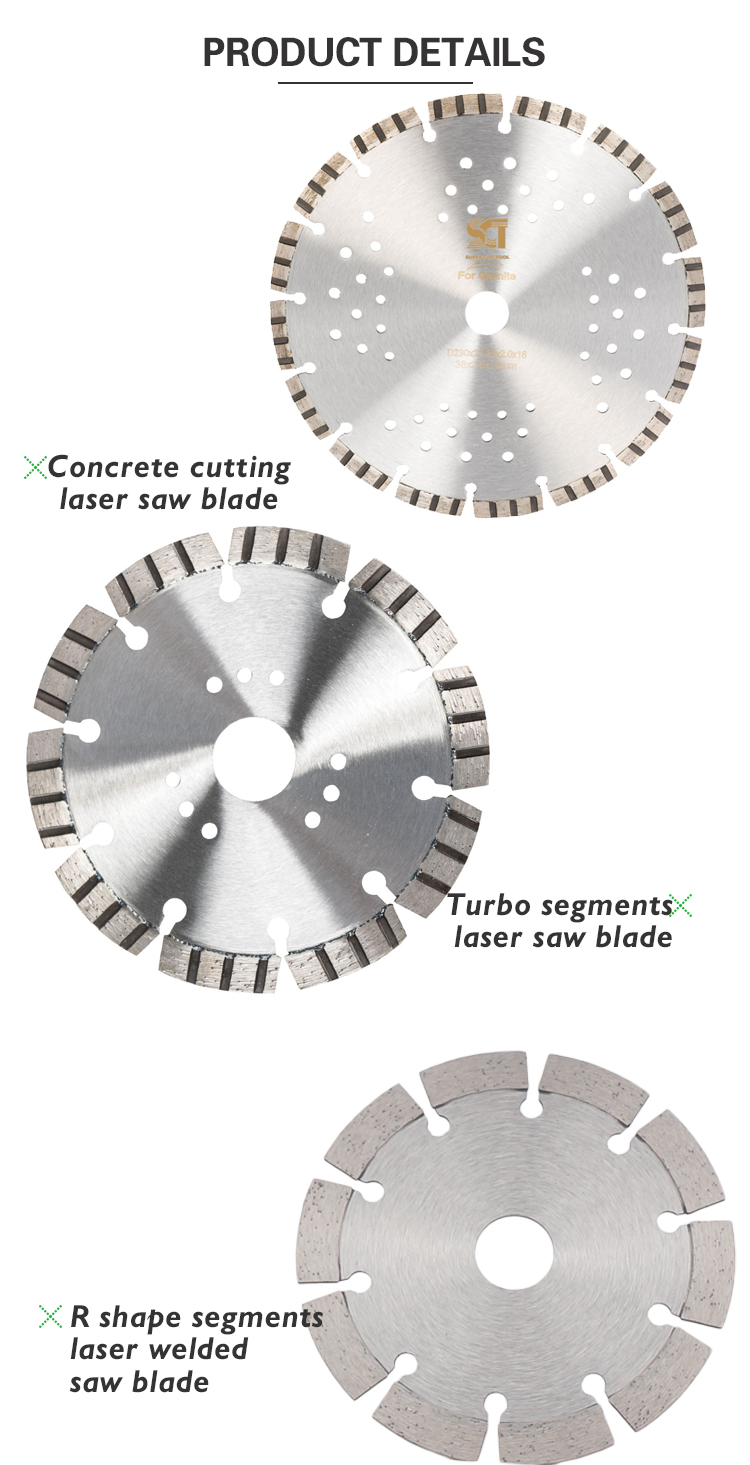

2: The shape of the current welded saw blade segment has R, W, and turbo type, etc.

3: Laser welded saw blade can be used for dry cutting or wet cutting.

4: Usually dry cutting laser welded saw blade have several round holes on the steel body for cooling.

Product features:

1. Fast cutting speed and small cutting gap.
2. High cutting efficiency and no chipping.
3. Dry cutting available.

Product specification

Diameter(mm)	Segment Dimension(mm)	Bore/mm	Segment No.
D105	322.210	22.23 or 25.4	8
D115	322.210	22.23 or 25.4	9
D125	322.210	22.23 or 25.4	10
D150	322.210	22.23 or 25.4	12
D180	322.610	22.23 or 25.4	14
D230	322.810	22.23 or 25.4	16
D250	322.810	22.23 or 25.4	17
D300	403.210	22.23 or 25.4	21
D350	403.210	22.23 or 25.4	24
D400	403.210	22.23 or 25.4	28
